RCU service kit K-TECH RAZOR-R/RAZOR-RR/RAZOR-R Lite 205-200-279

Shock Absorber Seal Head Service Kit - Razor-R

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

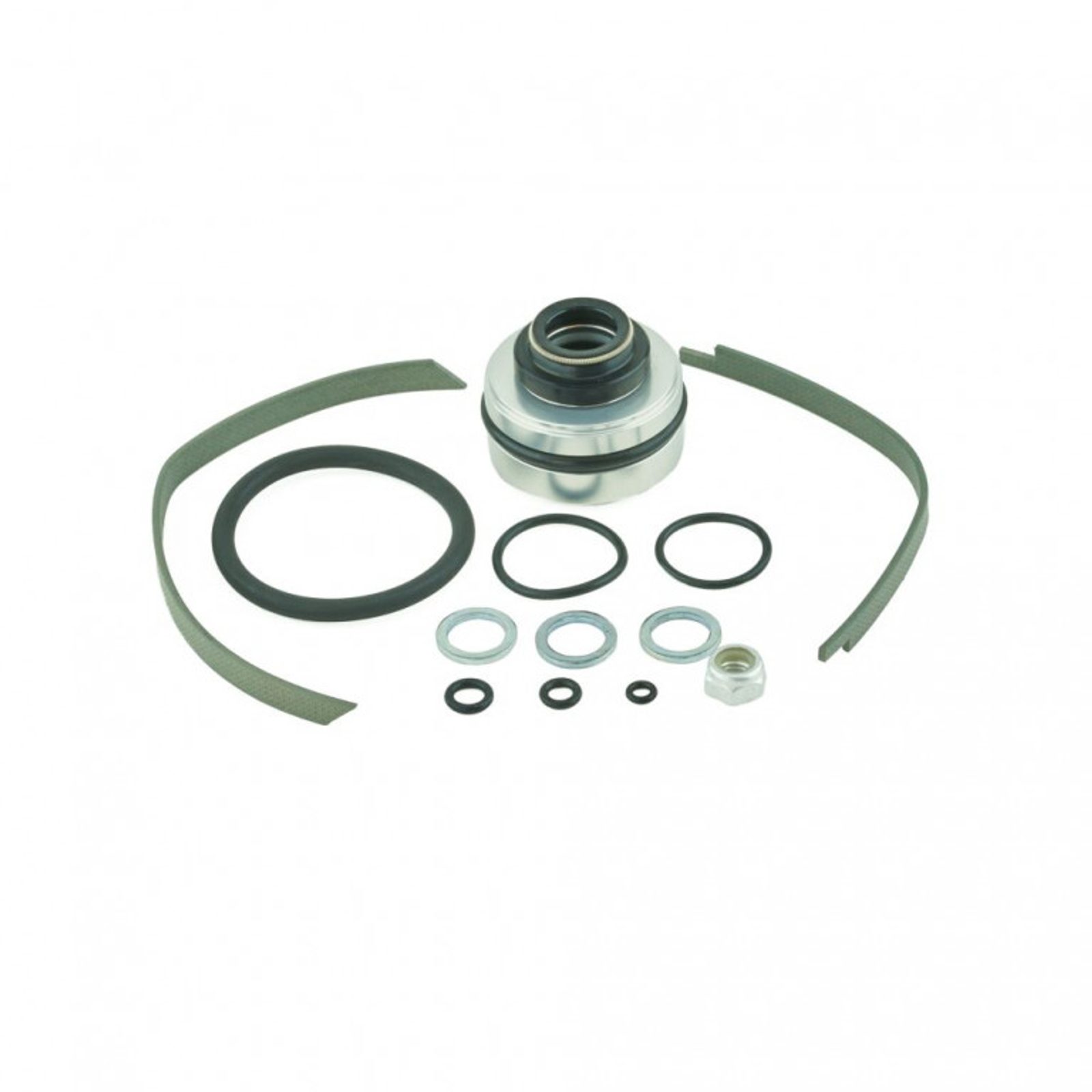

This kit consists of the following parts:

• O-Ring 02.79x1.24 NBR70
• O-Ring 04.00x1.50 NBR70
• O-Ring 04.10x1.50 NBR70
• O-Ring 05.10x1.60 NBR70
• O-Ring 17.10x1.60 NBR70
• O-Ring 20.00x1.78 NBR70
• O-Ring 38.00x2.50 NBR70
• O-Ring 27.00x4.00 FKM80
• O-Ring 38.00x4.00 FKM80
• Piston Ring Seperation Reservoir 138.00x6.20
• Banjo Bolt Washer 10.70x16.00x1.50
• Adj Lock Nut Compression M6x1.00P Alu
• Piston Band
• Seal Head Assy RAZOR
• Hydraulic Preload Adj Screw CSK M4x6 TX6
