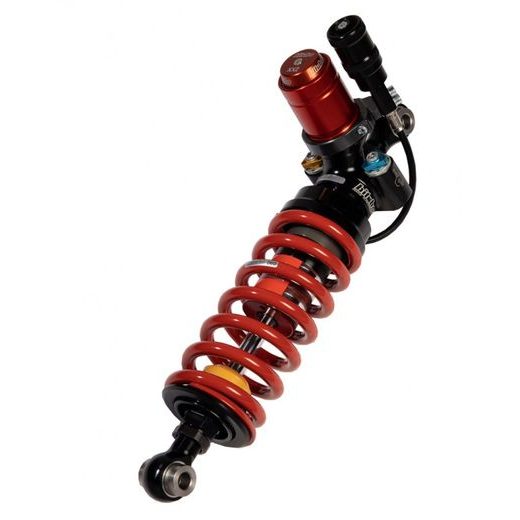

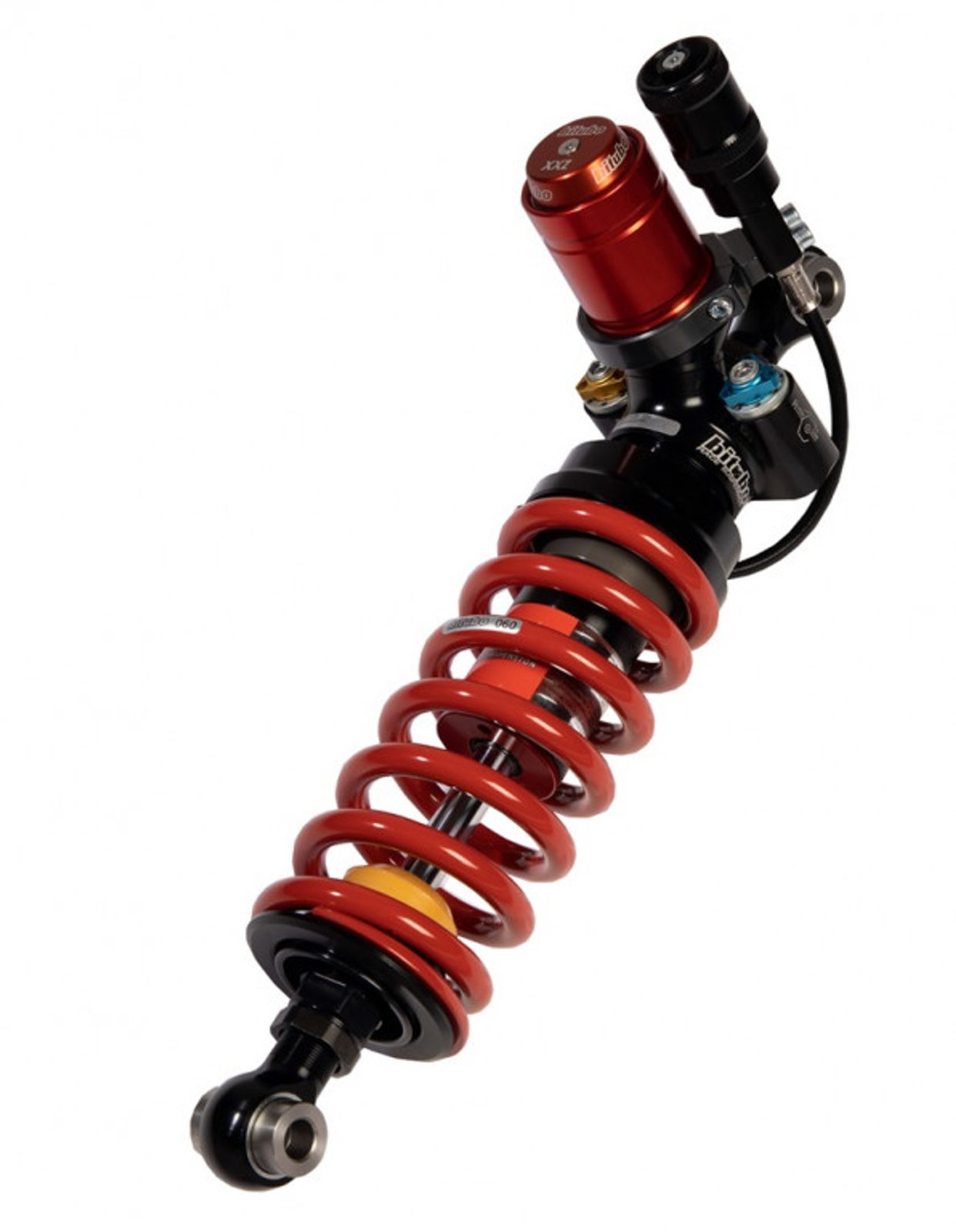

Rear monoshock BITUBO XXZ3 with hydraulic spring preload

Derived from the pluri-victorious XXF, the Mono XXZ, so far reserved only for our Official Teams, is confirmed as technologically at the top, presenting itself with a totally renewed design bringing with it many technical innovations, such as the 4 adjustments: compression and extension at low and high speeds, with new settings designed to give the rider the best feeling possible. Inside it is renewed with technical solutions that optimize the smoothness of moving parts, improve the damping coefficient and increase the stability at high temperatures, without forgetting the use of light materials to lower the overall weight. The Ø 14mm rod increases smoothness while the piston of Ø 30mm reduces the masses of fluid in motion for a faster response to stress, particular attention was dedicated to maximize the sensitivity and accuracy of adjustments. XXZ is designed to reduce inertia and ensure an immediate control of suspension oscillations.

TARGET is to give the rider precise control and increase maximum grip, as well as even tyre wear which is  provided by the immediate damping force. This gives confidence to the rider in the corners even at extreme lean angles, during fast direction changes and under hard  acceleration. At the same time it provides excellent stability of the rear, even under the most extreme braking, regardless of the track  or surface condition.

ADJUSTABLE IN:

Low speed compression: 24 clicks

High speed compression: 20 clicks

Rebound: 24 clicks

Hydraulic spring preload: 12 mm = 24 clicks

Length: 8mm

High speed rebound: 20 clicks

It is also available in the XXZ31V2 version with compact hydraulic preload adjustable in 10mm (=20 clicks).

INCLUDED IN THE PACK: Specific mounting instructions and setting chart.
